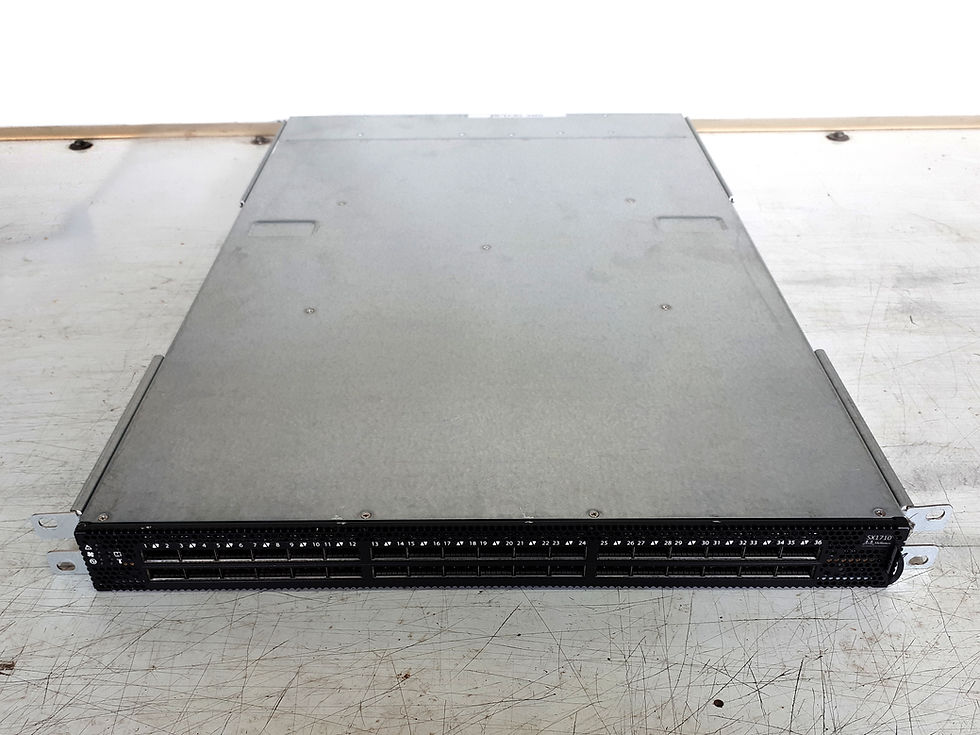

Mellanox MSX1710-BS2F2 SwitchX-2 Based 40GbE 1U Open Ethernet Switch 36 QSFP+ Ports 2 Power Supplies AC x86 Dual Core Standard Depth P2C Airflow Rail Kit RoHS6
The SX1710 switch system enables data center applications at the highest performance for best return on investment. The SX1710 SDN switch is ideally suited as a top-of-rack access switch providing up to 56GbE connectivity to servers and uplinks to the next level of aggregation switching. The SX1710 switch has a rich set of networking and application performance features that excel and enable Software Defined Networking in any data center, making this switch the perfect solution for your network.
Main Specifications:
Device type: Switch - 36 ports - managed
Enclosure Type: Rack-mountable - 1U
Dimensions (WxDxH): 16.9 in x 24.8 in x 1.7 in
Weight: 19.4 lbs
Processor / Memory / Storage:
RAM: 4 GB
Flash Memory Installed (Max): 16 GB
Networking:
Port Quantity: 36 x 40 Gigabit QSFP+
MAC Address Table Size: 48K entries
Jumbo Support: 9216 bytes
Routing Protocol: OSPF, BGP-4, IGMP, VRRP, static IP routing, ECMP
Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, TFTP, SSH-2, CLI
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP
Compliant Standards:
IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP),
IEEE 802.1w, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz
Expansion / Connectivity:
Interfaces: 36 x 40G bit LAN - QSFP+
1 x management (Gigabit LAN) - RJ-45
1 x consolePower
Power Device:
Internal power supplyInstall
Quantity: 2 (installed) / 2
(max)Redundancy: Yes
Referbushed - Professionally fully Tested by Experienced Technicians Very Good Working Condition - FULLY TESTED
NEARLY NO COSMETIC WEAR - PLS. SEE PICTURES
